Convoluted PTFE Sab nraum Braided Tubing

BESTYIELD Technology (Huizhou) Co., Ltd. yog ib qho ntawm cov ua lag luam thiab cov neeg muag khoom ntawm convoluted ptfe sab nraud braided tubing hauv Suav teb, kuj txhawb kev pabcuam customized. Txais tos rau kev lag luam wholesale bulk convoluted ptfe sab nraum braided tubing hauv Tshuag ntawm no thiab tau txais pricelist los ntawm peb lub hoobkas. Rau nqe kev sab laj, tiv tauj peb.

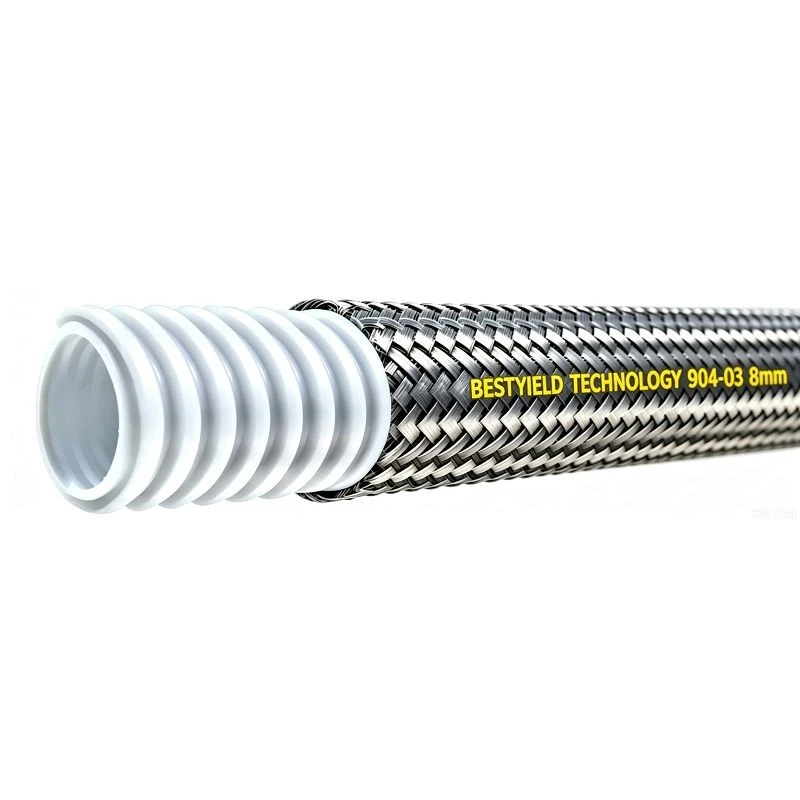

PTFE 904 series integrates ib tug convoluted PTFE core nrog ib tug sab nraud hlau braid reinforcement, xa ib tug tshwj xeeb tshuav nyiaj li cas ntawm multi-axis yooj thiab siab ntim rau dynamic industrial daim ntaub ntawv. Cov yam ntxwv tseem ceeb muaj xws li:

• Convoluted tubing:PTFE (Polytetrafluoroethylene) - corrugated geometry muab axial compression, lateral offset, thiab angular deflection muaj peev xwm
• Xim:Ntuj los yog ntau xim - ntuj PTFE rau tshuaj purity; xim xaiv rau ntau- kab ke kev txheeb xyuas
• Sab nraud braid:Polyester los yog stainless hlau - txwv tsis pub dhau- nthuav dav thiab ntxiv tawg lub zog thaum tswj kev hloov pauv hloov
• Qhov kub thiab txias:-150℃rau +250℃- cryogenic rau high-temperature chemical processing peev
• Ua raws li cov qauv:RoHS, REACH - Kev ua raws li European ib puag ncig thiab muaj kev phom sij
• Nplaim Resistance Rating:HB, V1, V2 - tus kheej- tua hluav taws thiab txwv - hlawv kev faib tawm



904 series sib koom ua ke qhov yooj yim ntawm convoluted PTFE nrog lub siab ntim ntawm sab nraud hlau braid, tsim ib lub hose uas occupies ib tug tshwj xeeb hauv nruab nrab nruab nrab ntawm lub siab -siab 902 series thiab siab -flexibility 903 series. Lub convoluted PTFE core muab multi-axis zog muaj peev xwm - axial compression, lateral offset, thiab angular deflection - thaum lub stainless hlau los yog polyester braid txwv ntau tshaj -expansion thiab ntxiv tawg zog mus txog 10 MPa. Qhov no hybrid architecture yog tsim los rau cov ntawv thov uas xav tau ob qho tib si tshuaj tiv thaiv thiab kev txav mus los: kev sib cais ntawm kev sib txuas ntawm lub twj tso kua mis, thermal expansion them nyiaj hauv cov txheej txheem piping, thiab articulating pob qij txha ntawm automated khoom. 904 series yog peb cov khoom siv ntau yam PTFE, pabcuam tshuaj lom neeg, khoom noj khoom haus, tshuaj, thiab cov neeg siv khoom siv dav siv nrog ib lub hose tov.

Qhov kev sib tw engineering hauv 904 series yog nyob rau hauv kev ua tiav txoj hlua khi kom txaus-rau- kev sib koom ua ke. Tsis zoo li du - tho qhov raj qhov twg lub braid sib cuag ib qho chaw cylindrical, lub convoluted geometry tsim alternating ncov thiab hav uas lub braid yuav tsum ua raws li tsis muaj bridging los yog gapping. Peb cov txheej txheem kev thov braid muaj tswv yim siv qhov sib txawv - nro braiding lub taub hau uas kho cov hlau nro nyob rau lub sijhawm tiag tiag thaum lub hose tig, kom ntseeg tau tias kev sib cuag braid zoo ib yam ntawm txhua qhov kev sib txuas. Lub kaum sab xis ntawm lub braid yog teem rau ntawm 58 ± 3℃- me ntsis steeper tshaj 902 series - kom haum raws li qhov loj dua txoj kab uas hla ntawm lub convolution peaks thaum tswj lub siab ntim ntawm lub hav.



Cov chaw ua tshuaj lom neeg nruab 904 series hoses raws li kev sib txuas yooj yim ntawm PTFE rigid-cov kav dej thiab cov khoom sib hloov (cov twj centrifugal, mixers, compressors), qhov twg kev vibration thiab misalignment yuav tawg pob qij txha tsis pub dhau lub hlis. Hauv kev tsim khoom noj thiab dej haus, cov hoses txuas qhov sib txawv ntawm cov kab txuas ruaj khov CIP thiab cov khoom siv hluav taws xob txav tau, tuav PTFE purity thaum ua kom haum rau qhov kev hloov kho uas xav tau rau cov zaub mov txawv txawv. Cov chaw tsim hluav taws xob siv 904 series rau flue gas desulfurization reagent txhaj kab, qhov twg thermal cycling ntawm ambient thiab 200℃yuav tsum muaj lub hose uas nthuav thiab cog lus yam tsis muaj kev qaug zog. 904 series kuj tau teev nyob rau hauv HVAC systems rau chilled dej sib txuas rau cov kiv cua coil units, integrating PTFE longevity nrog rau qhov yooj yim mus nqus tsev sib hais thiab cov yeeb nkab kev nyuaj siab.

Hauv kev lag luam tshuaj, 904 series ua haujlwm raws li kev vibration - cais kev sib txuas ntawm cov hlab ntsha uas tsis muaj menyuam thiab lawv cov twj tso kua mis thiab lub valve skids. Lub convoluted PTFE absorbs twj tso kua mis-induced vibration uas yuav kis tau los ntawm nruj kev sib txuas, tiv thaiv foob kev ncaj ncees ntawm lub nkoj nozzles. Cov nroj tsuag ua zaub mov muaj txiaj ntsig ntawm kev sib xyaw ua ke ntawm PTFE qhov tsis yog - nplaum nplaum (tiv thaiv cov khoom tsim tawm) nrog qhov yooj yim xav tau los txuas cov kav dej ruaj khov rau tilting kettles thiab tig taub hau.



Ib feem Tus lej	Hose ID		Hos OD		Ua Haujlwm Siab		MIN. Khoov Radius
	nti	mm	nti	mm	psi	MPa	nti	mm
904-01	3/16	4.0	0.24	6.0	1450	10.0	7/16	11
904-02	1/4	6.0	0.31	8.0	1450	10.0	9/16	15
904-03	5/16	8.0	0.39	10.0	1450	10.0	3/4	19
904-04	3/8	10.0	0.47	12.0	1160	8.0	7/8	23
904-05	1/2	12.0	0.55	14.0	870	6.0	1	25
904-06	9/16	14.0	0.63	16.0	725	5.0	1-3/16	30
904-07	5/8	16.0	0.75	19.0	725	5.0	1-7/16	37
904-08	3/4	19.0	0.87	22.0	580	4.0	1-11/16	43
904-09	1	25.0	1.14	29.0	435	3.0	1-3/4	45



• Lus ceeb toom:Sab hauv thiab sab nraud txoj kab uas hla yog customizable.



904 series muaj qhov zoo tshaj plaws ntawm kev sib tw hose thev naus laus zis thoob plaws ntau yam kev thov. Muab piv rau cov roj hmab hoses (xws li CR, EPDM, thiab NBR hom), PTFE tshem tawm cov tshuaj o tag nrho, txuas ntxiv lub neej kev pab cuam los ntawm 3-5 × nyob rau hauv ib puag ncig tshuaj lom neeg. Roj hmab hoses feem ntau yuav tsum tau hloov txhua txhua 12-18 lub hlis nyob rau hauv tas li ntawd mus chemical kev pab cuam, thaum PTFE-lined hoses niaj hnub tshaj 5 xyoo nyob rau hauv zoo tib yam tej yam kev mob.

Piv rau tus du -bore braided PTFE 902 series, lub 904 txi kwv yees li 50% ntawm lub peev xwm siab (10 MPa vs 19 MPa siab tshaj plaws) tab sis tau txais ntau -axis yooj uas 902 tsis tuaj yeem muab. Rau cov ntawv thov uas xav tau ob qho tib si txav thiab siab, 904 yog qhov kev xaiv meej.

Tawm tsam hlau bellows expansion pob qij txha, 904 muaj qhov hnyav dua (kwv yees li 40% tsawg dua rau qhov sib npaug ntawm txoj kab uas hla), thiab cov tshuaj tiv thaiv uas stainless hlau bellows tsis tuaj yeem sib phim thaum tuav cov xov xwm hnyav xws li cov kuab tshuaj chlorinated lossis cov ntxhia hauv cov kua qaub.

Muab piv rau cov PVC tsis muaj yas, 904 tiv taus qhov kub thiab txias 5 × siab dua (250℃vs 50 degree) nrog xoom plasticizer tsiv teb tsaws - ib qho txiaj ntsig tseem ceeb hauv cov khoom noj, tshuaj, thiab ultra- dej ntshiab.



Txhua qhov kev tsim tawm ntawm 904 series hose tau dhau los ua cov txheej txheem 5-kauj ruam zoo.

Kauj ruam 1:Cov khoom PTFE tuaj yeem kuaj xyuas lub zog tensile thiab lub ntiajteb txawj nqus tshwj xeeb ntawm ASTM D4895, ua kom cov khoom siv raw khoom sib xws ua ntej pib ua haujlwm. Ib qho batch poob sab nraud specification raug cais tawm thiab xa rov qab mus rau tus neeg muag khoom.

Kauj ruam 2:Convolution forming soj ntsuam siv qhov ntsuas qhov muag los xyuas qhov sib txawv ntawm qhov sib txawv hauv ± 0.5mm thiab kuaj pom txhua qhov chaw khawb, nicks, lossis deformation uas tuaj yeem tsim cov ntsiab lus kev ntxhov siab nyob rau hauv siab.

Kauj ruam 3:Braid daim ntawv thov kev pov thawj lees paub cov xov tooj suav ntawm ib tus neeg nqa khoom sib tw rau kev tsim kho engineering thiab ntsuas lub kaum sab xis braid ntawm peb lub ntsiab lus raws li qhov ntev hose siv lub digital protractor.

Kauj Ruam 4:Cov ntaub ntawv pov thawj Hydrostatic siv 1.5MPa siab rau 120 vib nas this, nrog rau kev tshuaj xyuas qhov muag pom kev, deformation mus tas li, los yog braid distortion.

Kauj ruam 5:Kev tshuaj xyuas qhov muag kawg thiab kev tshawb xyuas qhov ntev ntawm AQL 1.0 sampling plan txheeb xyuas qhov ntev, txoj kab uas hla, thiab cov khoom zoo nkauj. Tag nrho cov ntaub ntawv xeem tau muab khaws cia digitally rau 5 xyoos thiab tuaj yeem siv tau los ntawm QR code luam tawm ntawm txhua daim ntawv lo, ua kom tag nrho traceability los ntawm kev tsim hauv pem teb mus rau qhov kawg -neeg siv installation.
